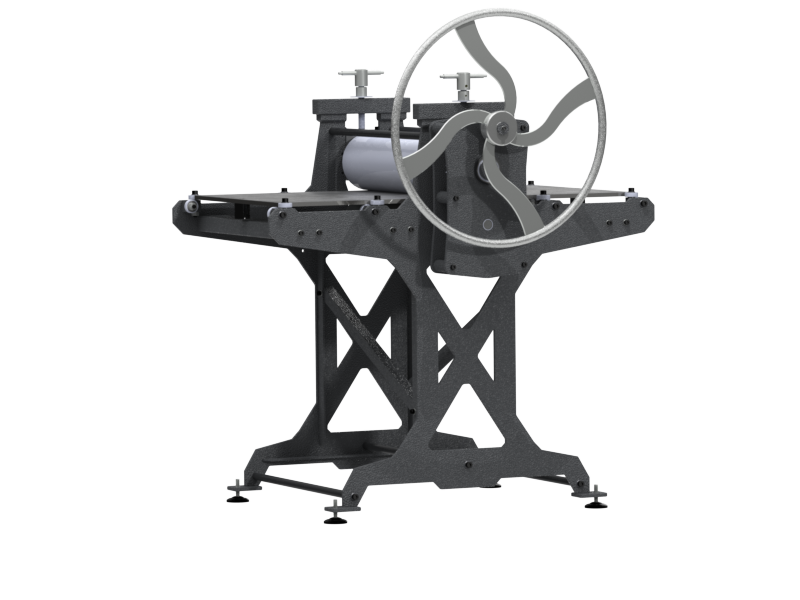

M SERIES ETCHING PRESS
The “most popular” Professional Etching Presses
The large diameter rollers (15cm) ensure uniform pressure distribution.
Rollers are supported by oversized, maintenance-free bushings.
The large ratio gearbox and the large 4 spokes wheel, provide easy and smooth printing. The gearbox is mounted on the upper roller.
The bed plate is made of 10mm high strength steel and has a 1mm galvanized steel cover.
It is supported and guided by roller bearings and has elastic stops at the ends.
Press is supported by 4 swivel, adjustable height feet, so it can be placed on uneven ground.
Pressure gauges, with 0.1mm accuracy, provide ease of height adjustment when using different materials.
Maximum opening: 4cm.
| M50x70 | M70x100 | M85x130 | |
|---|---|---|---|
| Upper Roller Diameter cm (inch) | 15 (5.9) | 15 (5.9) | 15 (5.9) |
| Lower Roller Diameter cm (inch) | 15 (5.9) | 15 (5.9) | 15 (5.9) |
| Reduction | 1/9 | 1/12 | 1/15 |
| Bed Plate Thickness mm (inch) | 10 (0.39) | 10 (0.39) | 10 (0.39) |
| Bed Plate Width cm (inch) | 54 (21.3) | 74 (29.1) | 89 (35) |
| Bed Plate Travel cm (inch) | 82 (32.3) | 122 (44.1) | 142 (55.9) |
| Max Opening cm (inch) | 4 (1.6) | 4 (1.6) | 4 (1.6) |
| Weight approx. kgr (lbs) | 255 (562) | 330 (727) | 390 (860) |
Refer to Downloads for Price List and Technical Information.
