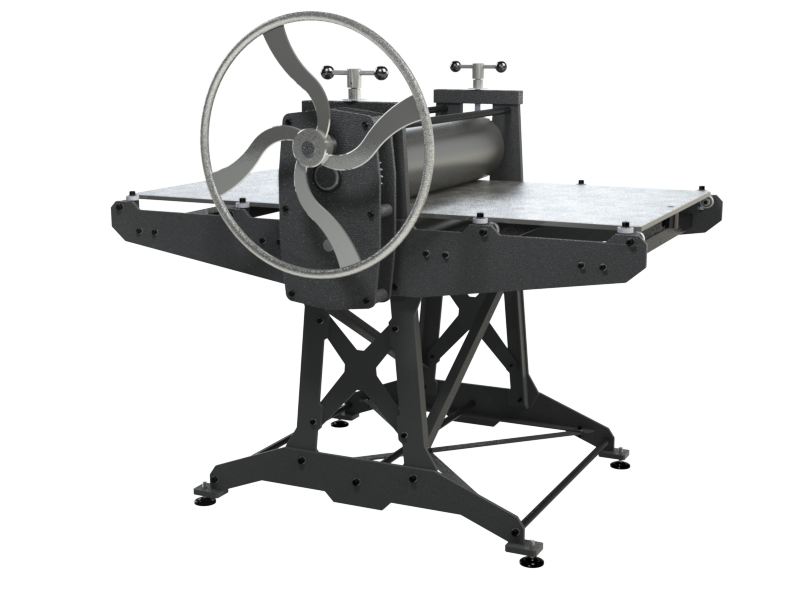

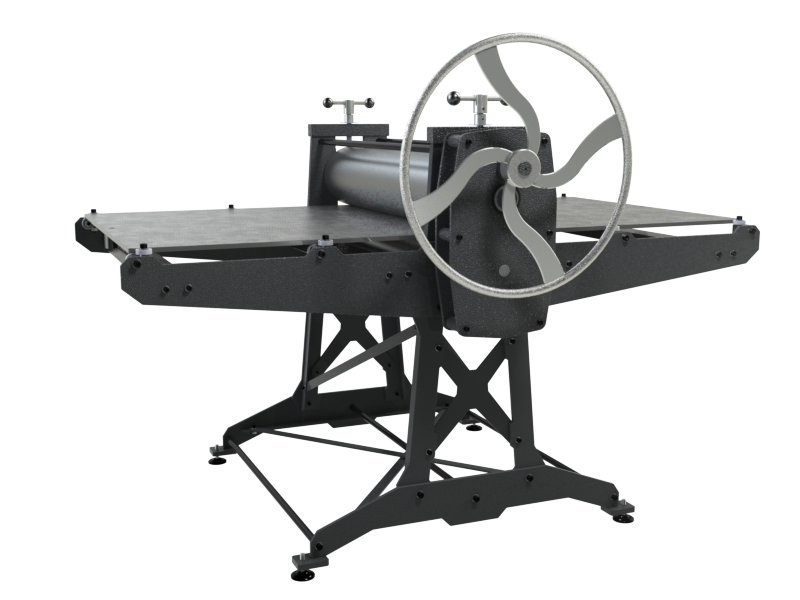

P SERIES ETCHING PRESS

The “Professional” Etching Presses

The large diameter rollers (19cm) ensure uniform pressure distribution.

Rollers are supported by oversized, maintenance-free bushings.

The large ratio gearbox and the large 4 spokes wheel, provide easy and smooth printing. The gearbox is mounted on the upper roller.

The bed plate is made of 10cm high strength steel and has a 1mm galvanized steel cover.

It is supported and guided by roller bearings and has elastic stops at the ends.

Press is supported by 4 swivel, adjustable height feet, so it can be placed on uneven ground.

Pressure gauges, with 0.1mm accuracy, provide ease of height adjustment when using different materials.

Maximum opening: 4cm (10cm upon request).

P50x70P70x100P85x130P100x150P100x200
Upper Roller Diameter cm (inch)19 (7.5)19 (7.5)19 (7.5)19 (7.5)19 (7.5)
Lower Roller Diameter cm (inch)19 (7.5)19 (7.5)19 (7.5)19 (7.5)19 (7.5)
Reduction1/121/151/181/211/21
Bed Plate Thickness mm (inch)10 (0.39)10 (0.39)10 (0.39)10 (0.39)10 (0.39)
Bed Plate Width cm (inch)54 (21.3)74 (29.1)89 (35)104 (40.9)104 (40.9)
Bed Plate Travel cm (inch)86 (33.9)116 (45.7)146 (57.5)166 (65.4)216 (85)
Max Opening cm (inch)4 (1.6)4 (1.6)4 (1.6)4 (1.6)4 (1.6)
Weight approx. kgr (lbs)305 (673)390 (860)470 (1037)545 (1200)600 (1325)

Refer to Downloads for Price List and Technical Information.
